LA E67F-BACA-24-3A4B-Z | Osram Opto Semi

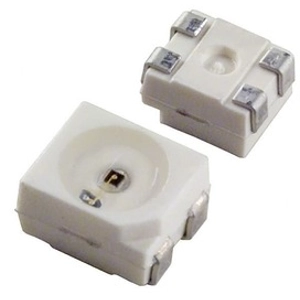

LED, SMD, PLCC-4, Ø 2.4 mm, amber, 624 nm, 1.8 to 4.5 cd, 120°, LA E67F-BACA-24-3A4B-Z
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1190 € *
Standard delivery time from the manufacturer is: 14 Weeks
Power LED, LA E67F-BACA-24-3A4B, Osram Opto Semi
The LA E67F-BACA-24-3A4B is a power top LED with lens, thanks to it's high luminous efficacy this LEDs is ideal for rear light clusters and indicators on vehicles and for display panels for traffic control systems.
Applications
- Cluster, Button backlighting
- Interior illumination
- Signalling
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | PLCC-4 | |
| Number of LEDs | 1 | |
| Colour of the LED | amber | |
| Light intensity min. | 1.8 cd | |
| Light intensity typ. | 4.5 cd | |
| Radiation angle | 120 ° | |
| Lens | clear | |
| On-State Voltage | 2.15 V | |
| Forward Current | 50 mA | |
| Wavelength | 624 nm | |
| Length | 3.2 mm | |
| Width | 2.8 mm | |
| diameter | 2.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| MSL | MSL 1 |
| Country of origin | CN |
| Original Packaging | Bar with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
