onsemi

TIP122G | onsemi

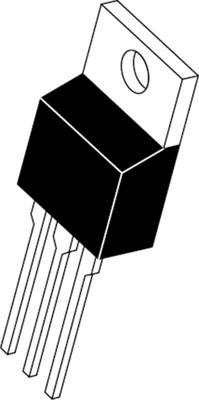

Bipolar junction transistor, NPN, 5 A, 100 V, THT, TO-220, TIP122G

Order No.:  25S3022
MPN:
TIP122G
Series:  TIP
EAN: 4099879029812
onsemi
default L
default S
Images may differ
Unit Price (€ / pc.)
0.8330 € *
Available: 730 pcs.
Leadtime: 14 Weeks **
Total Price:
4.17 € *
Quantity
Price per unit*
5 pcs.
0.8330 €
25 pcs.
0.7378 €
125 pcs.
0.6545 €
500 pcs.
0.5950 €
1000 pcs.
0.5355 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description

Transistor, TIP122G, ON Semiconductor

The TIP122G is an NPN Plastic Medium-Power Complementary Silicon Transistor designed for general-purpose amplifier and low-speed switching applications. This transistor features monolithic construction with built-in base-emitter shunt resistors.

Features

  • High DC current gain
Technical specifications
Version NPN
Enclosure TO-220
max. operating temperature 150 °C
max.voltage between collector and base Vcbo 100 V
max.voltage between collector and emitter Vceo 100 V
min. operating temperature -65 °C
Assembly THT
Rated current 5 A
Saturation voltage 4 V
Transit frequency fTmin 4 MHz
Power dissipation 65 W
Collector current 5 A
Min DC gain 1000 mA
Show similar products (0)
Logistics
Customs tariff number 85412900
Original Packaging Bar with 50 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Variations
Search results: 1 item in 5 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Availability
Power dissipation
Collector current
Saturation voltage
Rated current
Enclosure
Version
Assembly
min. operating temperature
max. operating temperature
Bipolar junction transistor, NPN, 5 A, 100 V, THT, TO-220, TIP122G
Order No.:
 25S3022
Manufacturer:
 onsemi
Manufacturer SKU:
 TIP122G
Total Price: 4.17 € *
5 pcs.
0.8330 €
25 pcs.
0.7378 €
125 pcs.
0.6545 €
500 pcs.
0.5950 €
1000 pcs.
0.5355 €
Available: 730 pcs.
Leadtime: 14 Weeks **
65 W
5 A
4 V
5 A
TO-220
NPN
THT
-65 °C
150 °C
