C3162402 | OKW
PC enclosure shell, (L x W x H) 240 x 160 x 60 mm, light gray (RAL 7035), C3162402
Order No.: 30H2933
EAN: 4099889513837
MPN:
C3162402
Gehäuseschale 160x240x60, mit D., PC
Series: ROBUST-BOX
Unit Price (€ / pc.)
58.3933 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
58.39 € *
Price list
Quantity
Price per unit*
1 pcs.
58.3933 €
10 pcs.
54.8947 €
50 pcs.
52.6813 €
*incl. VAT plus shipping costs
Subject to prior sale

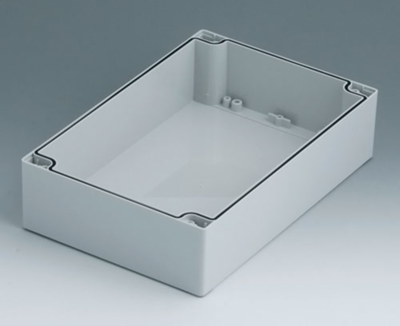

Case shell, C3162402, OKW
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of min. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PC | |
| Length | 240 mm | |
| Width | 160 mm | |
| Height | 60 mm | |
| Colour | light gray | |
| RAL number | 7035 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
