C2310917 | OKW

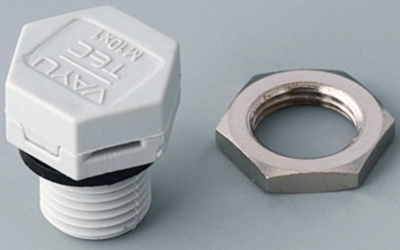

Pressure equalisation element M10x1
Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar. Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar. Water entry pressure 6 > bar. Temperature range -40°C/+110°C. Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Version | pressure compensation element | |
Colour | light gray | |
Material | polyamide |
Country of origin | DE |
Customs tariff number | 39269097 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | No |
Substance description | Lead |
