C1162402 | OKW
PC enclosure shell, (L x W x H) 240 x 160 x 30 mm, light gray (RAL 7035), C1162402
Order No.: 30H2841
EAN: 4099889513356
MPN:
C1162402
Gehäuseschale 160x240x30, mit D., PC
Series: ROBUST-BOX
Unit Price (€ / pc.)
35.6762 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
35.68 € *
Price list
Quantity
Price per unit*
1 pcs.
35.6762 €
10 pcs.
33.5342 €
50 pcs.
32.2014 €
*incl. VAT plus shipping costs
Subject to prior sale

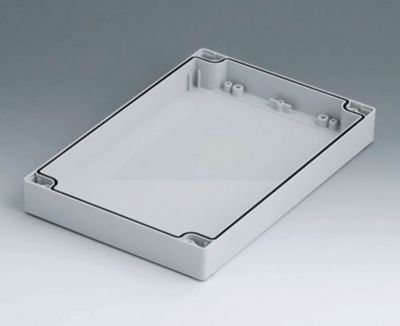

Case shell, C1162402, OKW
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of min. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PC | |
| Length | 240 mm | |
| Width | 160 mm | |
| Height | 30 mm | |
| Colour | light gray | |
| RAL number | 7035 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
