2083736 | OBO Bettermann
Cable gland, M63, 60/65 mm, Clamping range 36 to 47 mm, IP65, silver, 2083736
Order No.: 46P1145
EAN: 4012195518051
MPN:
2083736
162 MS M63
Unit Price (€ / pc.)
75.0057 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

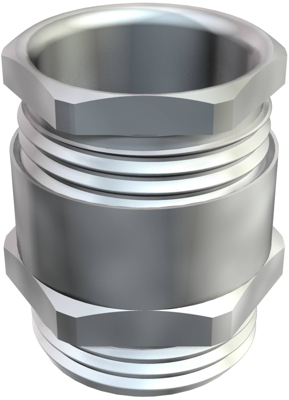

Cable gland, 162 MS M63, OBO Bettermann
Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with metric connection thread to DIN EN 60423 and ISO 68. Pressure rings made of electrogalvanised and transparently passivated steel with NR/SBR sealing ring.
Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.
Technical specifications
| Version | cable gland | |
| Colour | silver | |
| Thread size | M63 | |
| Length | 35 mm | |
| Material | brass, nickel-plated | |
| max. clamping range | 47 mm | |
| min. clamping range | 36 mm | |
| spanner size | 60/65 mm | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Customs tariff number | 74153900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
