2083728 | OBO Bettermann

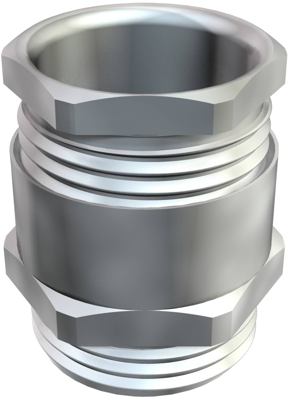

Cable gland, M40, 47/50 mm, Clamping range 24 to 31 mm, IP65, silver, 2083728
Cable gland, 162 MS M40, OBO Bettermann
Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with metric connection thread to DIN EN 60423 and ISO 68. Pressure rings made of electrogalvanised and transparently passivated steel with NR/SBR sealing ring.
Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.
Version | cable gland | |
Colour | silver | |
Thread size | M40 | |
Length | 29 mm | |
Material | brass, nickel-plated | |
max. clamping range | 31 mm | |
min. clamping range | 24 mm | |
spanner size | 47/50 mm | |
Degree of protection (IP) | IP65 |
Customs tariff number | 74153900 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
