2083732 | OBO Bettermann

Cable gland, M50, 54/57 mm, Clamping range 30 to 42 mm, IP65, silver, 2083732

Order No.: 46P1144
EAN: 4012195517993
MPN:
2083732
162 MS M50

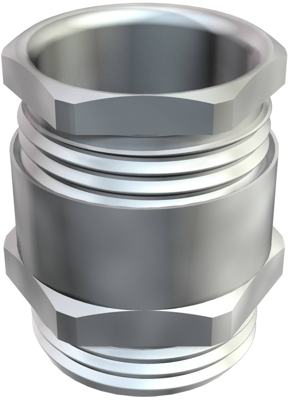

2083732 OBO Bettermann Cable Glands Image 1
2083732 OBO Bettermann Cable Glands Image 2
Image may differ
Unit Price (€ / pc.)
45.7674 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
228.84 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5 pcs.
45.7674 €

Cable gland, 162 MS M50, OBO Bettermann

Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with metric connection thread to DIN EN 60423 and ISO 68. Pressure rings made of electrogalvanised and transparently passivated steel with NR/SBR sealing ring.

Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.

Technical specifications
Colour silver
Degree of protection (IP) IP65
max. clamping range 42 mm
Length 33 mm
Product type cable gland
Material brass, nickel-plated
spanner size 54/57 mm
min. clamping range 30 mm
Thread size M50
Logistics
Customs tariff number 74153900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
