2083720 | OBO Bettermann
Cable gland, M25, 28/32 mm, Clamping range 10 to 20.5 mm, IP65, silver, 2083720
Order No.: 46P1141
EAN: 4012195517818
MPN:
2083720
162 MS M25
Unit Price (€ / pc.)
7.4137 € *
Standard delivery time from the manufacturer is: 6 Weeks

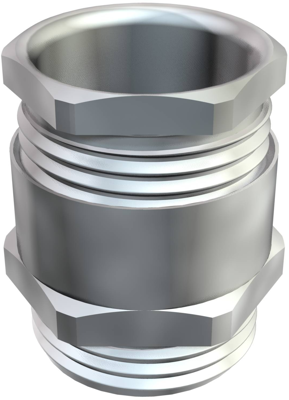

Cable gland, 162 MS M25, OBO Bettermann
Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with metric connection thread to DIN EN 60423 and ISO 68. Pressure rings made of electrogalvanised and transparently passivated steel with NR/SBR sealing ring.
Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP65 | |
| Material | brass, nickel-plated | |
| spanner size | 28/32 mm | |
| min. clamping range | 10 mm | |
| max. clamping range | 20.5 mm | |
| Thread size | M25 | |
| Product type | cable gland | |
| Colour | silver | |
| Length | 22 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74153900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
