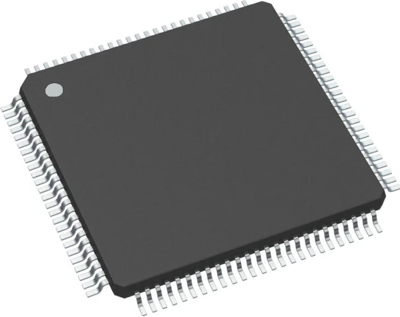

LPC55S69JBD100K | NXP

ARM Cortex microcontroller, LPC55S69JBD100K, NXP

The LPC55S69JBD100K is an ARM Cortex-M33–based microcontroller for embedded applications. It includes an ARM Cortex-M33 core, CASPER Crypto/FFT engine, PowerQuad hardware accelerator for DSP functions, up to 320 KB of on-chip SRAM, and up to 640 KB of on-chip Flash. The device also features a PRINCE module for on-the-fly Flash encryption/decryption, high-speed and full-speed USB host and device interfaces with crystal-less operation for full-speed. The ARM Cortex-M33 core provides a security foundation with TrustZone® technology, offering isolation to protect valuable IP and data. It also simplifies the design and software development of digital signal control systems through integrated DSP instructions.

Features

• Non-maskable Interrupt (NMI) input with a selection of sources
• System tick timer
• The Micro-Tick Timer running from the watchdog oscillator can be used to wake-up the device from sleep and deep-sleep modes. Includes 4 capture registers with pin inputs
• Integrated temperature sensor connected to the ADC
• Power-On Reset
