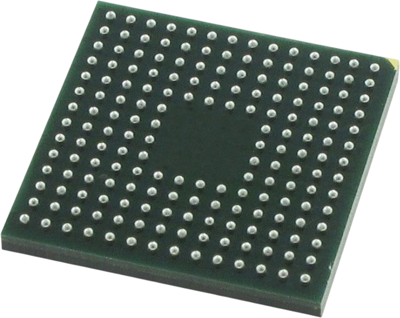

LPC3143FET180,551 | NXP
ARM926EJ-S microcontroller, 32 bit, 270 MHz, TFBGA-180, LPC3143FET180,551
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
7.6636 € *
Standard delivery time from the manufacturer is: 1 Week
Single-chip microcontroller, LPC3143FET180,551, NXP
The LPC3143FET180,551 combines a 270 MHz ARM926EJ-S CPU core, high-speed USB 2.0 Device/Host/On-The-Go (OTG), 192 kB SRAM, NAND flash controller, flexible external bus interface, four-channel 10-bit ADC (2 each), and a myriad of serial and parallel interfaces in a single chip targeted at consumer, industrial, medical, and communication markets. To optimize system power consumption, the LPC3143FET180,551 has multiple power domains and a very flexible Clock Generation Unit (CGU) that provides dynamic clock gating and scaling.
Features
- Internal memory
- External memory interface
- Multiple power domains
- DMA controller
- Watchdog timer
- Flexible and versatile interrupt structure
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | TFBGA-180 | |
| Assembly | SMD | |
| Version | ROMLess | |
| Processor core | ARM926EJ-S | |
| Core Size | 32 bit | |
| Clock frequency | 270 MHz | |
| Number of I/Os | 20 | |
| Data RAM Size | 192 KB | |
| Protocol | I2C, SPI, UART/USART, USB, EBI/EMI, PCM, IrDA | |
| Voltage | 1.1-3.6 V | |
| Number of pins | 180 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 3 |
| Customs tariff number | 85423190 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
