LPC1763FBD100K | NXP

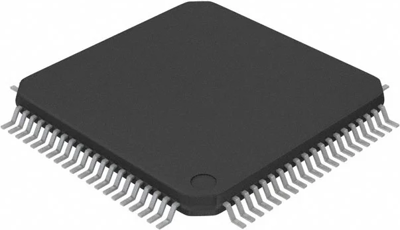

ARM Cortex microcontroller, LPC1763FBD100K, NXP

The LPC1763FBD100K microcontroller is an ARM Cortex-M3-based microcontroller for embedded applications, featuring a high level of integration and low power consumption. The ARM Cortex-M3 is a next-generation core that offers system enhancements such as enhanced debug features and a higher level of support block integration. The LPC1763FBD100K operates at CPU frequencies of up to 100 MHz. The ARM Cortex-M3 CPU incorporates a 3-stage pipeline and uses a Harvard architecture with separate local instruction and data buses, as well as a third bus for peripherals. It also includes an internal prefetch unit that supports speculative branching.

Features

• Emulation trace module enables non-intrusive, high-speed real-time tracing of instruction execution
• Non-maskable Interrupt (NMI) input
• Brownout detect with separate threshold for interrupt and forced reset
• Power-On Reset (POR)
• Code Read Protection (CRP) with different security levels

Applications

• eMetering
• Lighting
• Industrial networking
• Alarm systems
• White goods
• Motor control
