PBSS4140U,115 | NEXPERIA

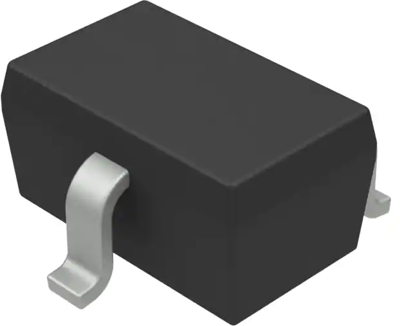

Bipolar junction transistor, NPN, 1 A, 40 V, SMD, SOT-323, PBSS4140U,115
Unit Price (€ / pc.)
0.1702 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
NPN transistor, PBSS4140U,115, NEXPERIA
NPN low VCEsat transistor in a SOT323 plastic package.
Features
- Low collector-emitter saturation voltage
- High current capabilities
- Improved device reliability due to reduced heat
- AEC-Q101 qualified
Applications
- General purpose switching and muting
- LCD backlighting
- Supply line switching circuits
- Battery driven equipment
Technical specifications
| Version | NPN | |
| Enclosure | SOT-323 | |
| max. operating temperature | 150 °C | |
| max.voltage between collector and base Vcbo | 40 V | |
| max.voltage between collector and emitter Vceo | 40 V | |
| min. operating temperature | -65 °C | |
| Assembly | SMD | |
| Transit frequency fTmin | 150 MHz | |
| Power dissipation | 0.25 W | |
| Collector current | 1 A | |
| Min DC gain | 150 mA |
Download
Logistics
| Customs tariff number | 85412900 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
