83201420 | murrplastik

Cable protection conduit, inside Ø 22.3 mm, outside Ø 28.3 mm, BR 230 mm, PP, black, 83201420

Order No.: 47P1314
EAN: 4045005164070
MPN:
83201420
EW-R-PP-LS M25/P21 SCHWARZ
Series: EW-R-PP-LS
83201420 murrplastik Protective Tubes

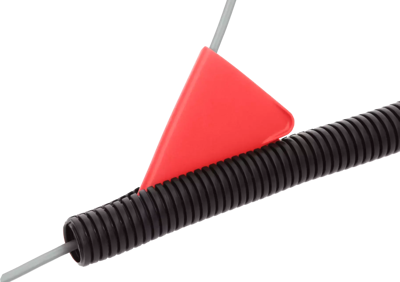

Image may differ
Unit Price (€ / mtr.)
1.9040 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
190.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
1.9040 €

Cable protection conduit, 83201420, murrplastik

Cable protection conduit simple, lightweight version - for the installation of pre-assembled cables.

Features

  • Flexible conduit for simple dynamic applications
  • Medium mechanical load
  • Resource-saving through recycled material
  • For mechanical engineering and chemical plants
Technical specifications
Filter Property Value
Material PP
Inner diameter 22.3 mm
Colour black
max. operating temperature 130 °C
Nominal width 23 mm
Outer diameter 28.3 mm
min. operating temperature -40 °C
Bending radius 230 mm
Logistics
Property Value
Customs tariff number 39173200
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
