83201416 | murrplastik
Cable protection conduit, inside Ø 15.6 mm, outside Ø 21 mm, BR 180 mm, PP, black, 83201416
Unit Price (€ / mtr.)
1.2019 € *
Standard delivery time from the manufacturer is: 1 Week

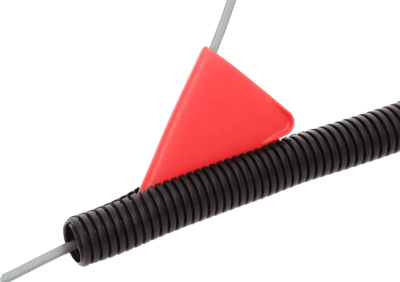

Cable protection conduit, 83201416, murrplastik
Cable protection conduit simple, lightweight version - for the installation of pre-assembled cables.
Features
- Flexible conduit for simple dynamic applications
- Medium mechanical load
- Resource-saving through recycled material
- For mechanical engineering and chemical plants
Technical specifications
Filter | Property | Value |
---|---|---|
Material | PP | |
Inner diameter | 15.6 mm | |
Colour | black | |
max. operating temperature | 130 °C | |
Nominal width | 17 mm | |
Outer diameter | 21 mm | |
min. operating temperature | -40 °C | |
Bending radius | 180 mm |
Download
Logistics
Property | Value |
---|---|
Customs tariff number | 39173200 |
Country of origin | DE |
Compliance
Property | Value |
---|---|
Date of RoHS guidelines | 3/31/15 |
RoHS conform | Yes |
SVHC free | Yes |
