83641214 | murrplastik
Tubing holders, P29, (L x W x H) 46 x 38 x 48 mm, PC, gray, for cable protection conduits type EL/ELS/EV, 83641214
Unit Price (€ / pc.)
6.4379 € *
Standard delivery time from the manufacturer is: 1 Week

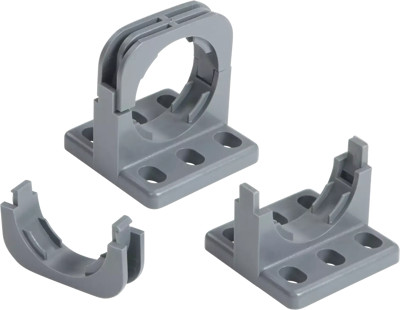

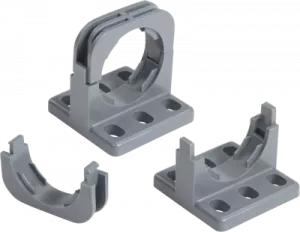

Tube holder, 83641214, murrplastik

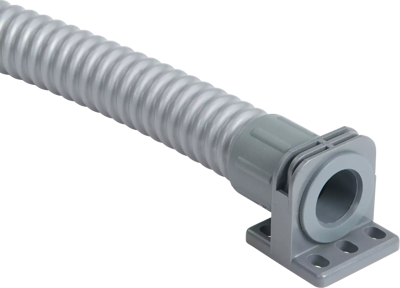

The USH/D holder with rotating part is made of specially modified polycarbonate. The material is halogen, phosphor and cadmium-free. The holder with rotating part is used for quick and easy holding of Murrplastik EL, ELS and EVK cable protection conduits.
Features
- Various fastening possibilities
- Conduits can still be rotated
- Pre-assembly of lower part possible
Technical specifications
Product type | tubing holders | |
Colour | gray | |
Material | PC | |
min. operating temperature | -40 °C | |
max. operating temperature | 110 °C | |
Suitable for | cable protection conduits type EL/ELS/EV | |

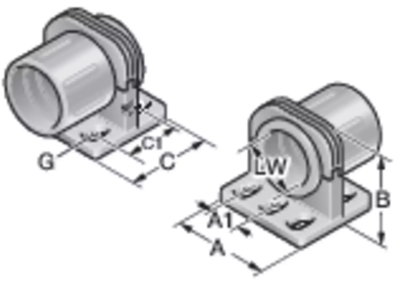

Height | 48 mm | |
Length | 46 mm | |
Width | 38 mm | |
Version | P29 |
Download
Logistics
Customs tariff number | 39174000 |
Country of origin | DE |
Compliance
RoHS conform | Yes |
SVHC free | Yes |
Date of RoHS guidelines | 3/31/15 |
