MIKROE-3505 | MikroElektronika
L Meter click MIKROE-3505
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
17.1598 € *
Standard delivery time from the manufacturer is: 4 Weeks
L Meter Click, MIKROE-3505, MikroElektronika

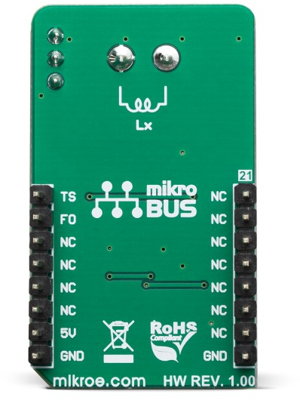

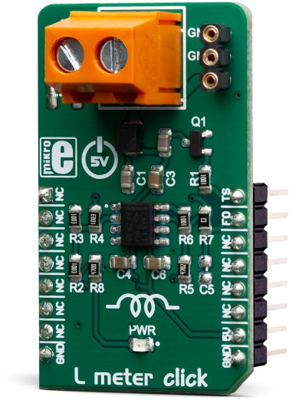

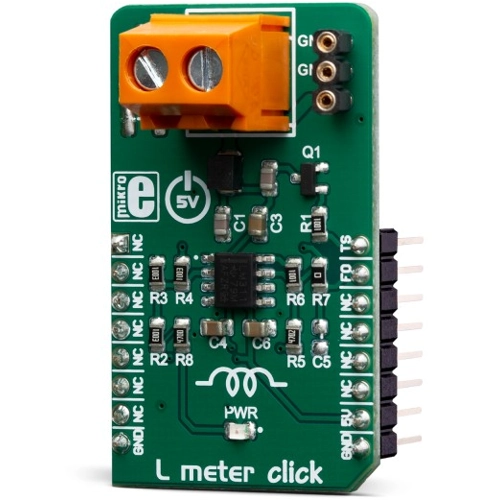

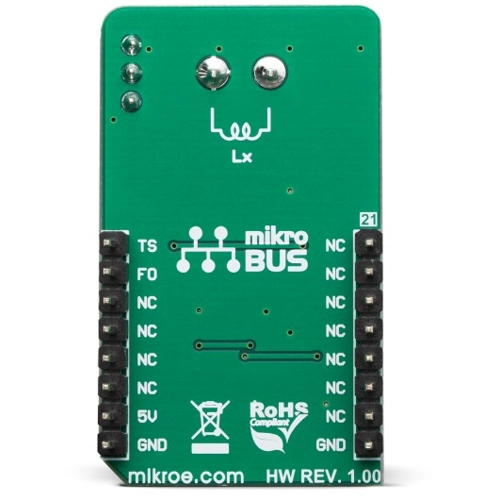

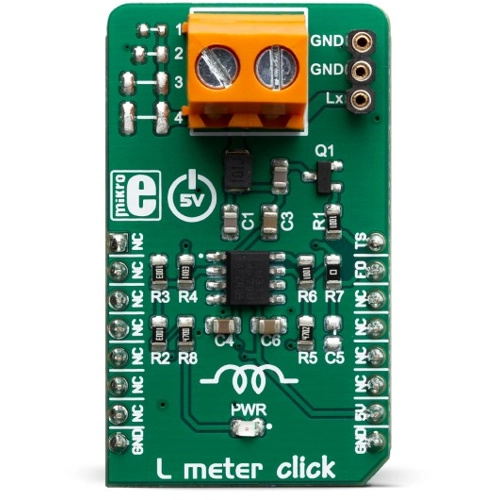

L meter Click is a compact and accurate Click board, capable of measuring and monitoring the inductance of the external component. The board can be used to measure a wide range of inductance. The design is based on a single high-speed voltage comparator LM311 by which the frequency of the oscillating LC circuit is measured and, based on the known value of capacitance, measures the unknown inductance value.

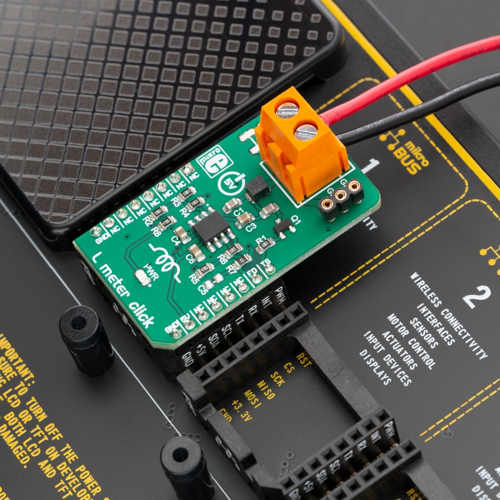

L meter Click can be used to measure inductance as well as to check the accuracy and precision of the coil. This Click board comes as a fully tested product, ready to be used on a system equipped with the mikroBUS socket.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | inductance sensor | |
| Version | L Meter click | |
| Function | inductance meter | |
| MPU interface | GPIO |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84733020 |
| Country of origin | RS |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
