SAML Touch Click MIKROE-3414
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
26.6203 € *
Standard delivery time from the manufacturer is: 4 Weeks
Touch Click, MIKROE-3414, MikroElektronika

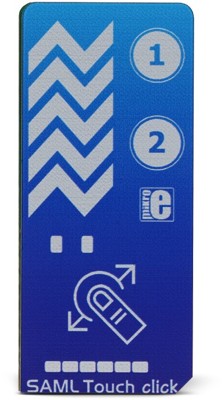

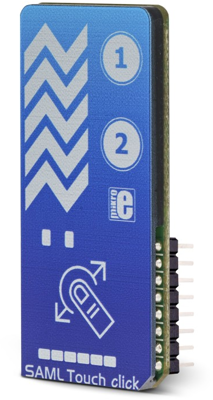

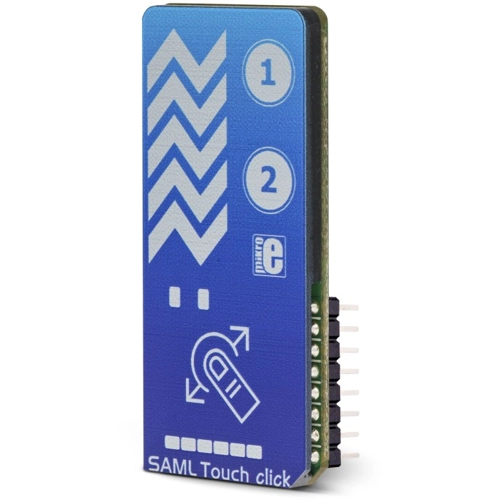

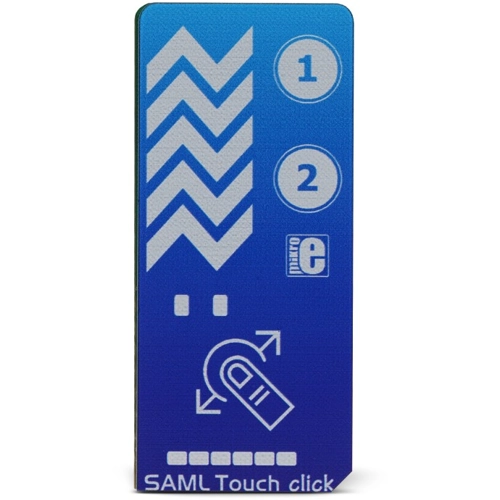

SAML Touch Click is a Click board equipped with two capacitive touch pads and one capacitive slider. There are also LED indicators, which are used to indicate touch evens for each of the available touch components: two LEDs (one for each touchpad), and one six-segment bargraph, used to indicate touch position across the slider.

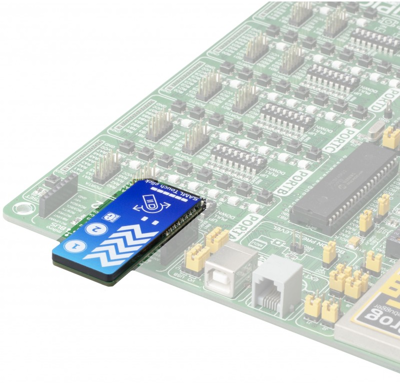

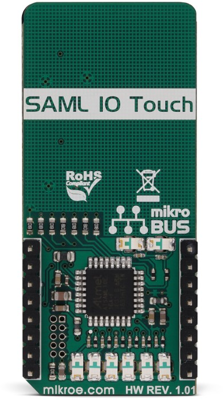

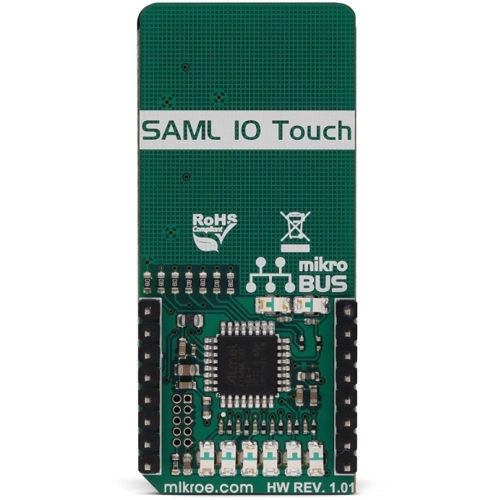

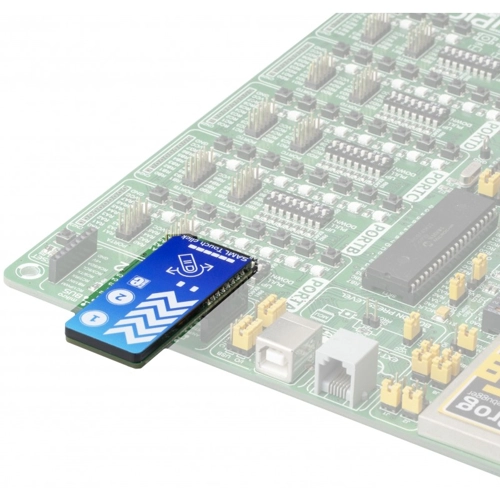

SAML click is based on the ATSAML10 MCU, an ultra-low power equipped with the Peripheral Touch Controller (PTC), perfectly suited for realization of various types of touch applications with superior water tolerance, excellent noise immunity and responsiveness. This Click board comes as a fully tested product, ready to be used on a system equipped with the mikroBUS socket.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | development board | |
| Version | SAML Touch Click | |
| Function | capacitive touchpad | |
| MPU interface | UART |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84733020 |
| Country of origin | RS |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
