MIKROE-2436 | MikroElektronika
Voltmeter click MIKROE-2436
Unit Price (€ / pc.)
42.9233 € *
Standard delivery time from the manufacturer is: 4 Weeks
Voltmeter Click, MIKROE-2436, MikroElektronika

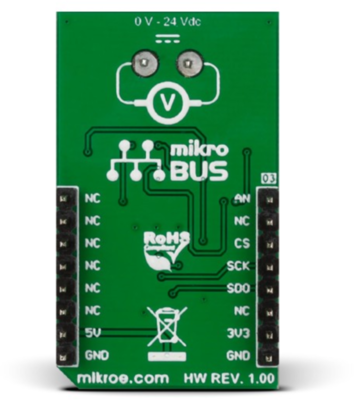

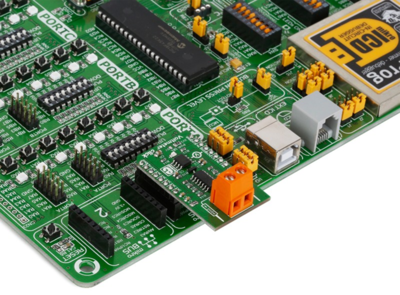

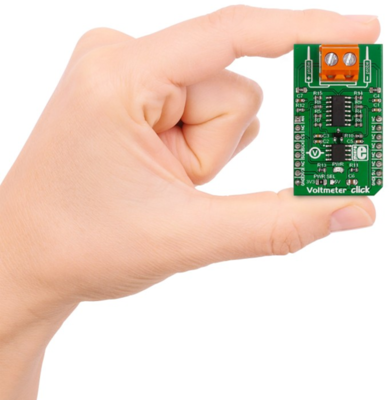

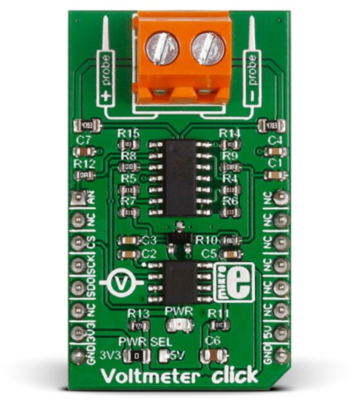

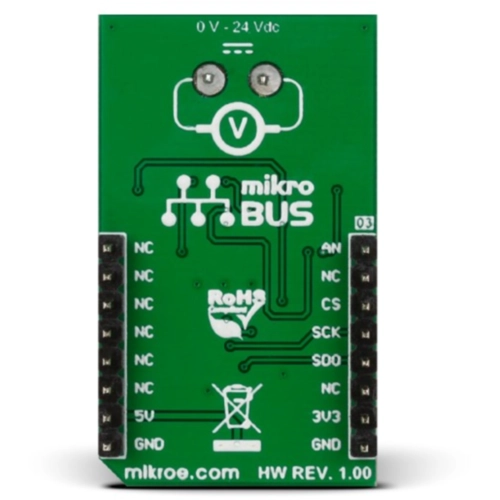

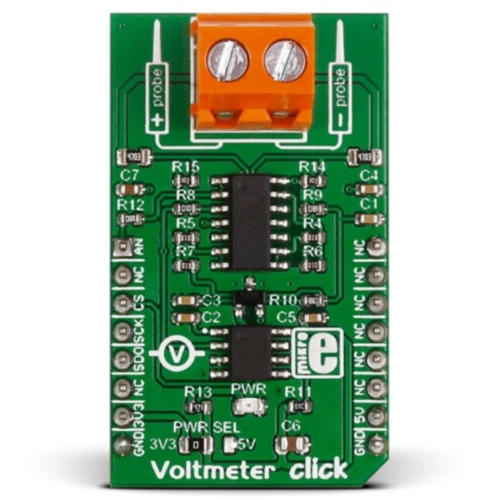

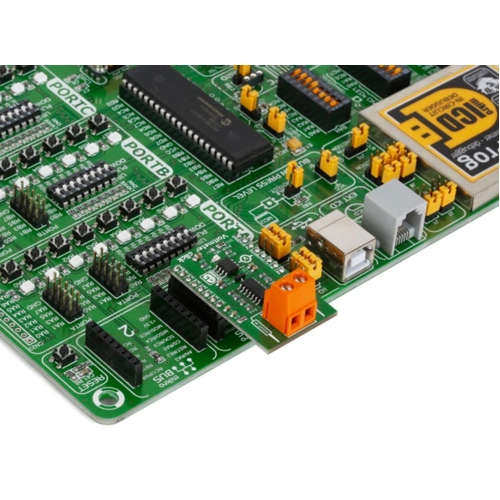

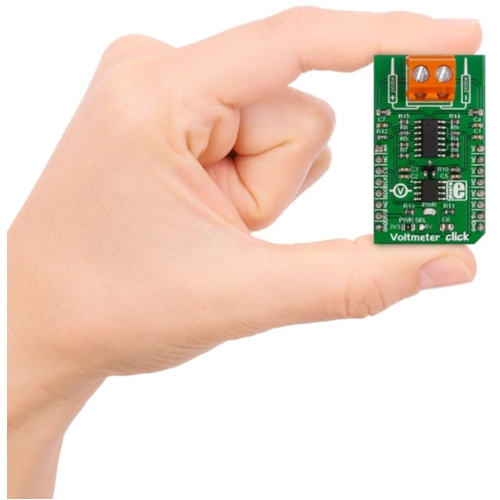

The Voltmeter Click is a compact add-on board with circuitry for measuring the voltage in an external electric circuit. It is designed to measure Direct Current only and has a measurement range from 0 to 24V, with the possibility to measure both positive and negative charges. This Click board makes the perfect solution for the development of applications based on voltage measurements, tools, and comes as a fully tested product, ready to be used on a system equipped with the mikroBUS socket.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | voltmeter click | |
| Function | voltage | |
| MPU interface | SPI | |
| IC controller/driver | MAX6106, MCP3201, MCP609 | |
| Product type | development board |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84733020 |
| Country of origin | RS |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
