Ammeter click MIKROE-2377
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
42.9233 € *
Standard delivery time from the manufacturer is: 4 Weeks

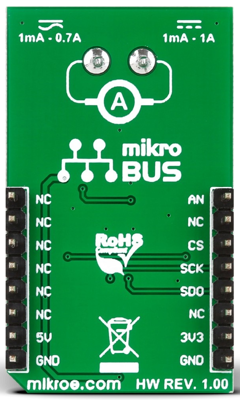

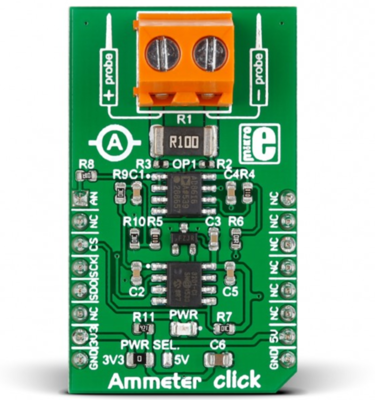

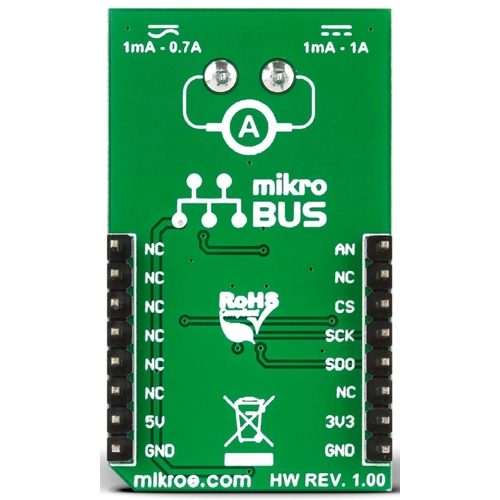

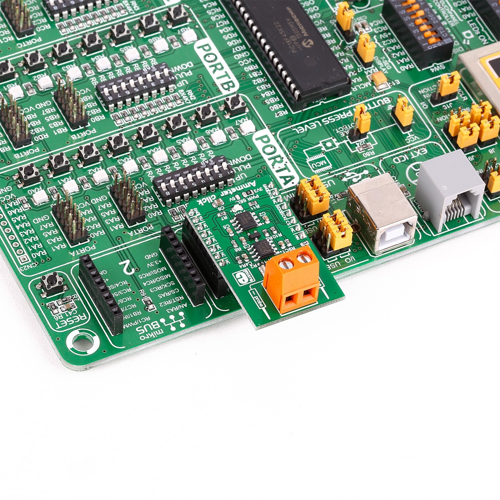

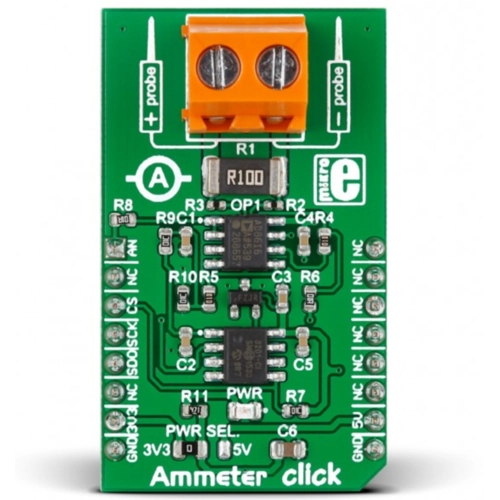

Ammeter Click, MIKROE-2377, MikroElektronika
Ammeter Click is a compact add-on board with circuitry for measuring AC and DC electric current. This board features the AD8616, a precision 20MHz CMOS rail-to-rail input/output operational amplifier. The Ammeter Click can measure the exact amperage between 1mA and 1A for DC current. It’s also possible to measure the AC current by deriving the value from peak-to-peak measurements. The maximum safe voltage range for the current measurement is 48V.
This Click board makes the perfect solution for the development of applications based on electric current measuring and monitoring, tools, and more.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | development board | |
| Version | Ammeter click | |
| Function | current measurement | |
| MPU interface | SPI |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84733020 |
| Country of origin | RS |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
