MIKROE-1194 | MikroElektronika

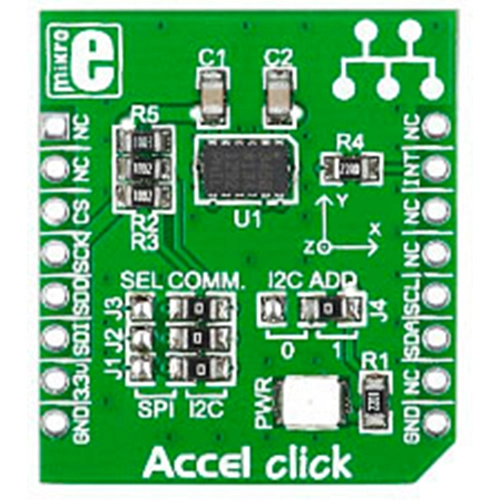

Accel click MIKROE-1194
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
12.7330 € *
Standard delivery time from the manufacturer is: 4 Weeks
Interface: I2C or SPI,Power Supply: 3.3V,On-board modules: ADXL345 3-axis accelerometer,Applications: Board is ideal for mobile devices, medical and industrial instrumentation, navigation devices, hard drive protection and more.,Key Features: Ultra low power consumption: 40 µA in measurement mode and 0.1 µA in standby mode. Selectable measurement range of ±2 g, ±4 g, ±8 g, or ±16 g,Key Benefits: High resolution enables measurement of inclination changes less than 1.0°. Embedded FIFO technology minimizes host processor load,Compatibility: mikroBUS,Product Type: Motion,Click board size: S (28.6 x 25.4 mm)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | extension board | |
| Version | Accel click |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RS |
| Customs tariff number | 84733020 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
