BH-8000 | METCAL
ESD printed circuit board carriers, 258 x 258 mm, BH-8000
Order No.: 12L7699
EAN: 01220000617537
MPN:
BH-8000
Unit Price (€ / pc.)
928.20 € *
Standard delivery time from the manufacturer is: On Request

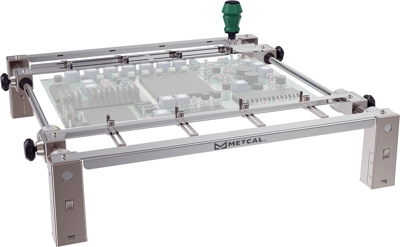

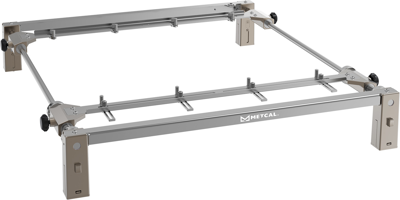

METCAL BH-8000 Board Holder

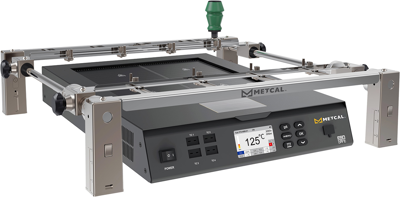

Adjustable in all directions (front, back, left, right), 3 levels of height adjustment, ESD common grounding point (grounding wire included), maximum PCB size 378 x 418 mm (15" x 16.5"), PCB thickness range 0.5 to 3 mm (0.02" to 0.12"), dimensions 584 x 526 x 102.5 mm (23" x 20.7" x 4"), weight 3.2 kg (7.1 lbs), accessories: screwdriver (x1) and grounding wire (x1), compatible with Metcal PT4-8000 preheater.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | printed circuit board carriers | |
| Size | 258 x 258 mm | |
| ESD protection | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85159080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
