NES/J 21 | Lumberg

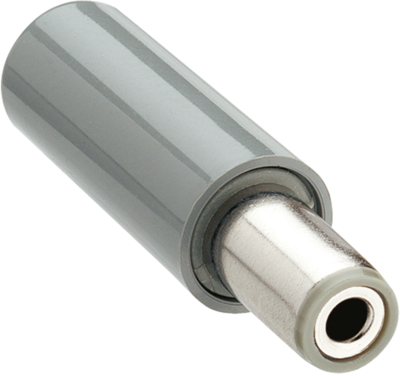

DC plug, inner Ø 2.1 mm, outer Ø 5.5 mm, gray, NES/J 21
Unit Price (€ / pc.)
0.9044 € *
Available: 5,599 pcs.
Total Price:
0.90 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9044 €
100 pcs.
0.7735 €
500 pcs.
0.6783 €
*incl. VAT plus shipping costs
Subject to prior sale
DC plug, NES/J 21, Lumberg
Power supply plug, straight version, with solder eyes.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | No | |
| Assembly | cable assembly | |
| Colour | gray | |
| Product type | plug | |
| Outer diameter | 5.5 mm | |
| Rated current | 500 mA | |
| With bend protection | No | |
| Connection | solder connection | |
| Rated voltage | 12 V | |
| Cable diameter | 4 mm | |
| Shaft length | 9.5 mm | |
| Inner diameter | 2.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
