NEK/J 210 | Lumberg

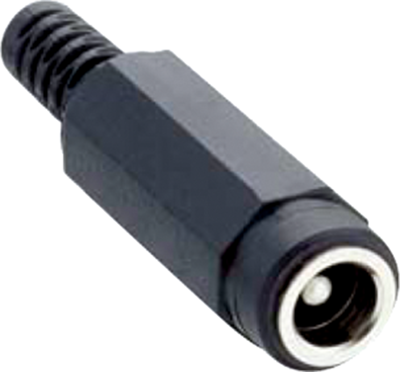

DC plug, 5.7 mm, 2 mm
Active
Product by Lumberg at Bürklin Elektronik
Power supply cable plug with bend protection, type Lumberg NEK/J.
2-pole, with solder eyelets; Housing: plastic. Color: black. Rated voltage: 24 VDC. Current rating: 2 A. Test voltage: 500 V/60 s. Operating temperatures: –20 °C to +70 °C.
Technical attributes (type, center pin diameter CP, mating diameter MD): NEK/J 210, CP 2.0 mm, MD 5.7 mm
| Connection | solder connection | |
| Version | plug | |
| Colour | black | |
| Cable diameter | 4 mm | |
| Hole diameter | 5.7 mm | |
| Assembly | cable assembly | |
| Rated voltage | 24 V | |
| Rated current | 2 A | |
| Latching switching function | No | |
| Pin diameter | 2 mm | |
| With bend protection | Yes |
| Country of origin | JP |
| Customs tariff number | 85366990 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
