NEB/J 21 C | Lumberg

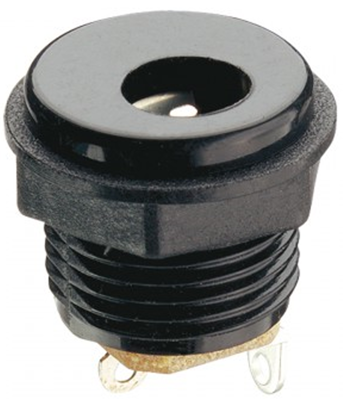

DC panel-mount switched socket, 6.3 mm, 2 mm
Active
Product by Lumberg at Bürklin Elektronik
Power supply chassis sockets, front panel mount, type Lumberg NEB/J..C.
2-pole, straight, NC contact, solder eyelets; Housing: plastic. Color: black. Rated voltage: 12 VDC. Current rating: 0.5 A. Test voltage: 500 V/60 s. Operating temperatures: - 25 °C to +70 °C.
Technical attributes (type, center pin diameter CP, mating diameter MD): NEB/J 21 C, CP 2.0 mm, MD 6.3 mm
| Connection | solder connection | |
| Version | mounting socket | |
| Outer diameter | 12.8 mm | |
| Colour | black | |
| Inner diameter | 6.3 mm | |
| Hole diameter | 6.3 mm | |
| Assembly | built-In mounting | |
| Rated voltage | 12 V | |
| Rated current | 0.5 A | |
| Latching switching function | Yes | |
| Pin diameter | 2 mm | |
| With bend protection | No |
| Country of origin | JP |
| Customs tariff number | 85366990 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
