MDCG-4-17-23 | Littelfuse

Reed switche, THT, 1 Form A (N/O), 10 W, 200 V (DC), 0.5 A, MDCG-4-17-23

Order No.: 30G2032
EAN: 4099889448238
MPN:
MDCG-4-17-23
Series: MDCG-4
Littelfuse
default L

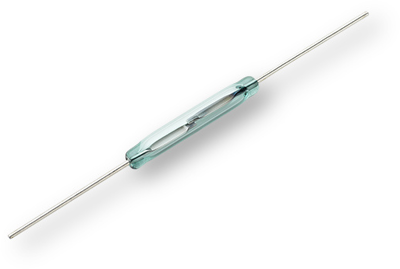

Image may differ
Unit Price (€ / pc.)
2.1777 € *
Available: 315 pcs.
Leadtime: On Request **
Total Price:
2.18 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1777 €
25 pcs.
1.8564 €
100 pcs.
1.7017 €
250 pcs.
1.6184 €
1000 pcs.
1.4756 €
*incl. VAT plus shipping costs
**Subject to prior sale

Subminiature reed switches, type Hamlin MDCG-4.

Contact type: NO. Contact rating: max. 10 W. DC switching voltage/current: max. 200 VDC/max. 0.5 A. On-state current: max. 1.2 A. Dielectric strength: min. 250 VDC. Contact resistance (new state): max. 100 mohm. Capacitance: typically 0.2 pF. Response time (including bounce): max. 0.6 ms. Release time: max. 0.2 ms. Resonant frequency: typically 3900 Hz. Operating temperatures: –40 to +125 °C.

With restricted pull-in range.

Type: 17 to 23 AW

Technical specifications
Connection axial
Version reed switche
diameter 2.28 mm
Length 40.38 mm
Assembly THT
Latching switching function 1 Form A (N/O)
Breaking capacity 10 W
Switching Voltage (AC) 140 V
Switching Voltage (DC) 200 V
switching current 0.5 A
Contact resistance 100 mΩ
Logistics
Country of origin US
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
1 item in 2 variations
