MDCG-4-12-23 | Littelfuse
Reed switche, THT, 1 Form A (NO), 10 W, 200 V (DC), 0.5 A, MDCG-4-12-23
Active
Product by Littelfuse at Bürklin Elektronik

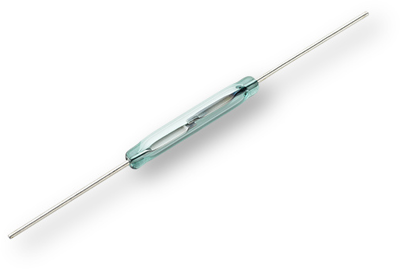

Subminiature reed switches, type Hamlin MDCG-4.
Contact type: NO. Contact rating: max. 10 W. DC switching voltage/current: max. 200 VDC/max. 0.5 A. On-state current: max. 1.2 A. Dielectric strength: min. 250 VDC. Contact resistance (new state): max. 100 mohm. Capacitance: typically 0.2 pF. Response time (including bounce): max. 0.6 ms. Release time: max. 0.2 ms. Resonant frequency: typically 3900 Hz. Operating temperatures: –40 to +125 °C.
With standard pull-in range.
Type: 12 to 23 AW
| Connection | axial | |
| Version | reed switche | |
| diameter | 2.28 mm | |
| Length | 40.38 mm | |
| Assembly | THT | |
| Latching switching function | 1 Form A (NO) | |
| Breaking capacity | 10 W | |
| Switching Voltage (AC) | 140 V | |
| Switching Voltage (DC) | 200 V | |
| switching current | 0.5 A | |
| Contact resistance | 100000 Ω |
| Country of origin | US |
| Customs tariff number | 85365080 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
