1232676 | LAPP

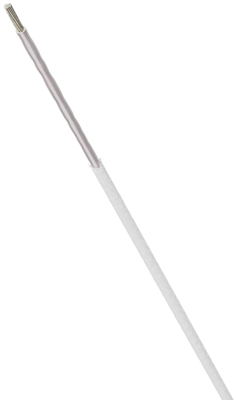

Glass silk-switching strand, halogen free, ÖLFLEX HEAT 700 SC, 2.5 mm², outer Ø 3.5 mm, 1232676

Order No.: 92F7180
EAN: 4064728498422
MPN:
1232676
ÖLFLEX HEAT 700 SC 1X2,5
1232676 LAPP Insulated stranded wires
Image may differ
Unit Price (€ / mtr.)
11.6144 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1,161.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
11.6144 €

Glass fibre insulated single core, 1232676, LAPP

The ÖLFLEX HEAT 700 SC single core cable is suitable for fixed installation and wiring of an electrical cabinet, motor and within a machine, lighting and appliance at an ambient temperature up to +700°C. The ÖLFLEX HEAT 700 SC cable protects an electric circuit at an extreme location, e.g. a blast furnace, coke mill, oil refinery, glasswork, aluminium- and steel work etc.

Features

  • Halogen-free
  • Cold-resistant
  • Temperature-resistant
  • Only suitable for use in dry conditions
Technical specifications
Conductor category CL.5 = fine stranded
Rated voltage U0 300 V
Test voltage 2 kV
Rated voltage 500 V
Halogen free Yes
Core insulation material glass silk
Temperature range (unmoved) -50 °C to 700 °C
Bending radius unmoved 35 mm
Cable cross-section 2.5 mm²
Outer diameter 3.5 mm
Cable material copper, nickel-plated
Logistics
Customs tariff number 85444995
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
