26609972 | LAPP

Fibre optic cable, singlemode 9/125 µm, fibers: 72, OS2, PE, black, 26609972

Order No.: 33P3061
EAN: 4056155124968
MPN:
26609972
HITRONIC HVN-Mini500 6x12E 9/125 OS2
26609972 LAPP Fiber Optic Cables
Image may differ
Unit Price (€ / mtr.)
4.1055 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
410.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
4.1055 €

Fiber optic cable, 26609972, LAPP

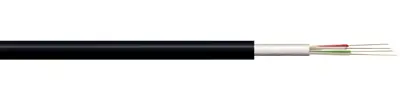

The 26609972 is a micro outdoor glass fibre optic cable with multiple stranded loose tubes, non-metallic strength elements and halogen-free cable sheath, reduced and compact outer dimensions.

Features

  • Mechanical resistance
  • Low weight
  • Optimum strain relief
  • UV-resistant
  • Waterproof

Applications

  • For outdoor use
  • Campus backbone
  • WAN applications
  • Designed for installation by air-blowing systems
Technical specifications
Filter Property Value
Material PE
Chamfer type singlemode 9/125 µm
Temperature range (unmoved) -40 °C to 70 °C
Number of fibres 72
Outer diameter 5.8 mm
Colour black
Category OS2
Halogen free Yes
Logistics
Property Value
Customs tariff number 85447000
Country of origin ES
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
