26609944 | LAPP

LWL-Kabel, singlemode 9/125 µm, Fibers: 144, OS2, PE, black, halogen free, 26609944

Order No.: 33P3059
EAN: 4056155124937
MPN:
26609944
HITRONIC HVN-Mini 1000 12x12E 9/125 OS2
LAPP
default L
Image may differ
Unit Price (€ / mtr.)
7.5565 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
7.56 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
7.5565 €

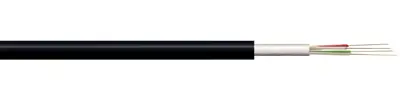

Fiber optic cable, 26609944, LAPP

The 26609944 is a micro outdoor glass fibre optic cable with multiple stranded loose tubes, non-metallic strength elements and halogen-free cable sheath, reduced and compact outer dimensions.

Features

  • Mechanical resistance
  • Low weight
  • Optimum strain relief
  • UV-resistant
  • Waterproof

Applications

  • For outdoor use
  • Campus backbone
  • WAN applications
  • Designed for installation by air-blowing systems
Technical specifications
Number of fibres 144
Outer diameter 8 mm
Colour black
Chamfer type singlemode 9/125 µm
Halogen free Yes
Category OS2
Material PE
Temperature range (unmoved) -40 °C to 70 °C
Logistics
Country of origin ES
Customs tariff number 85447000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
