26609944 | LAPP
Fibre optic cable, singlemode 9/125 µm, fibers: 144, OS2, PE, black, 26609944
Order No.: 33P3059
EAN: 4056155124937
MPN:
26609944
HITRONIC HVN-Mini 1000 12x12E 9/125 OS2
Series: HITRONIC HVN-Mini
Unit Price (€ / mtr.)
6.5093 € *
Standard delivery time from the manufacturer is: On Request
Fiber optic cable, 26609944, LAPP

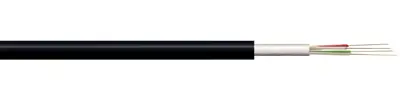

The 26609944 is a micro outdoor glass fibre optic cable with multiple stranded loose tubes, non-metallic strength elements and halogen-free cable sheath, reduced and compact outer dimensions.
Features
- Mechanical resistance
- Low weight
- Optimum strain relief
- UV-resistant
- Waterproof
Applications
- For outdoor use
- Campus backbone
- WAN applications
- Designed for installation by air-blowing systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Chamfer type | singlemode 9/125 µm | |
| Colour | black | |
| Outer diameter | 8 mm | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Number of fibres | 144 | |
| Halogen free | Yes | |
| Category | OS2 | |
| Material | PE |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85447000 |
| Country of origin | ES |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
