11101403 | LAPP

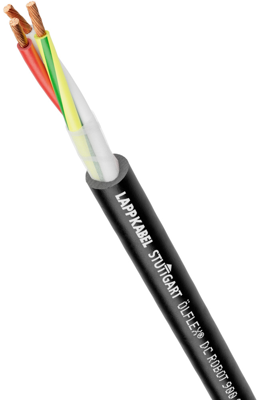

PUR connection cable ÖLFLEX DC ROBOT 900 3 G 4.0 mm², unshielded, black, 11101403
Order No.: 33P2733
EAN: 4056157261425
MPN:
11101403
ÖLFLEX DC ROBOT 900 3G4
Series: ÖLFLEX DC ROBOT 900
Unit Price (€ / mtr.)
16.7671 € *
Standard delivery time from the manufacturer is: 6 Weeks
DC connection cable, 11101403, LAPP
The 11101403 is a connection cable with an outer sheath of Polyurethane for torsion and bending stresses and fixed installation under medium mechanical stress, it is also cut proof and resists microbes and hydrolysis. This product is suitable for linear, automated movements, as well as torsional applications in robots and automated handling machines. The maximum tensile load is 15 N/mm² of conductor cross-section during installation and operation.
Features
- Suitable for outdoor use
- Cold-resistant
- Oil-resistant
- UV-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | No | |
| Colour | black | |
| Test voltage | 4 kV | |
| Core colour sequence | red/white/green-yellow | |
| Cable cross-section | 4.0 mm² | |
| Outer diameter | 10.6 mm | |
| Version | connection line | |
| Rated voltage U0 | 750 V | |
| Material | PUR | |
| Temperature range (active) | -35 °C to 90 °C | |
| Number of cores | 3 | |
| Protective conductor available | Yes | |
| Rated voltage | 1.5 kV | |
| Temperature range (unmoved) | -50 °C to 90 °C | |
| Shielding | unshielded | |
| Core insulation material | TPE | |
| Conductor category | CL.6 = finest stranded | |
| Drag chain suitable | Yes | |
| Cable material | copper, bright |
Download
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
