11101402 | LAPP

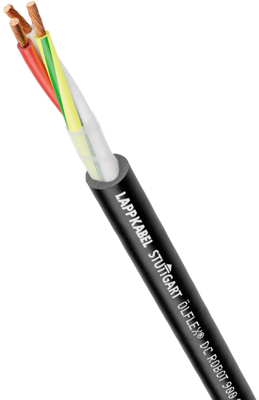

PUR connection cable ÖLFLEX DC ROBOT 900 3 G 2.5 mm², unshielded, black, 11101402
Order No.: 33P2731
EAN: 4056157261395
MPN:
11101402
ÖLFLEX DC ROBOT 900 3G2,5
Series: ÖLFLEX DC ROBOT 900
Unit Price (€ / mtr.)
12.4117 € *
Standard delivery time from the manufacturer is: On Request
DC connection cable, 11101402, LAPP
The 11101402 is a connection cable with an outer sheath of Polyurethane for torsion and bending stresses and fixed installation under medium mechanical stress, it is also cut proof and resists microbes and hydrolysis. This product is suitable for linear, automated movements, as well as torsional applications in robots and automated handling machines. The maximum tensile load is 15 N/mm² of conductor cross-section during installation and operation.
Features
- Suitable for outdoor use
- Cold-resistant
- Oil-resistant
- UV-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | TPE | |
| Temperature range (active) | -35 °C to 90 °C | |
| Test voltage | 4 kV | |
| Colour | black | |
| Halogen free | No | |
| Number of cores | 3 | |
| Shielding | unshielded | |
| Outer diameter | 9.3 mm | |
| Conductor category | CL.6 = finest stranded | |
| Temperature range (unmoved) | -50 °C to 90 °C | |
| Material | PUR | |
| Rated voltage U0 | 750 V | |
| Protective conductor available | Yes | |
| Rated voltage | 1.5 kV | |
| Drag chain suitable | Yes | |
| Core colour sequence | red/white/green-yellow | |
| Product type | connection cable | |
| Cable material | copper, bright | |
| Cable cross-section | 2.5 mm² |
Download
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
