11101400 | LAPP

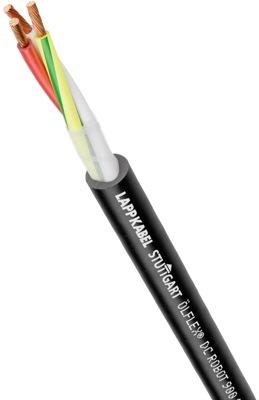

PUR connection cable ÖLFLEX DC ROBOT 900 3 G 0.5 mm², unshielded, black, 11101400
Order No.: 33P2725
EAN: 4056157261333
MPN:
11101400
ÖLFLEX DC ROBOT 900 3G0,5
Series: ÖLFLEX DC ROBOT 900
Unit Price (€ / mtr.)
6.3903 € *
Standard delivery time from the manufacturer is: On Request
DC connection cable, 11101400, LAPP
The 11101400 is a connection cable with an outer sheath of Polyurethane for torsion and bending stresses and fixed installation under medium mechanical stress, it is also cut proof and resists microbes and hydrolysis. This product is suitable for linear, automated movements, as well as torsional applications in robots and automated handling machines. The maximum tensile load is 15 N/mm² of conductor cross-section during installation and operation.
Features
- Suitable for outdoor use
- Cold-resistant
- Oil-resistant
- UV-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Protective conductor available | Yes | |
| Core colour sequence | red/white/green-yellow | |
| Temperature range (unmoved) | -50 °C to 90 °C | |
| Rated voltage | 1.5 kV | |
| Temperature range (active) | -35 °C to 90 °C | |
| Material | PUR | |
| Core insulation material | TPE | |
| Shielding | unshielded | |
| Product type | connection cable | |
| Drag chain suitable | Yes | |
| Outer diameter | 6.4 mm | |
| Cable cross-section | 0.5 mm² | |
| Rated voltage U0 | 750 V | |
| Test voltage | 4 kV | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright | |
| Number of cores | 3 | |
| Halogen free | No |
Download
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
