1023275 | LAPP

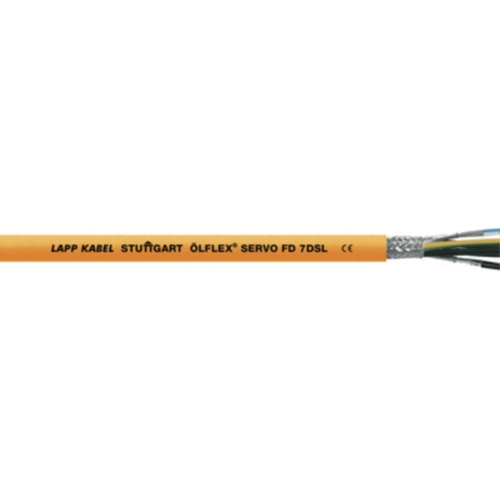

PUR servo line ÖLFLEX SERVO FD 7DSL 6-wire, orange, 1023275
Order No.: 30P7224
EAN: 4044776756842
MPN:
1023275
ÖLFLEx SERVOFD7DSL 4G1,5+2x22
Series: ÖLFLEX SERVO FD 7DSL
Unit Price (€ / mtr.)
16.3982 € *
Standard delivery time from the manufacturer is: On Request
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 1000 V | |
| Material | PUR | |
| Protective conductor available | Yes | |
| Rated voltage | 1 kV | |
| Rated voltage U0 | 600 V | |
| Product type | servo line | |
| Temperature range (active) | -40 °C to 90 °C | |
| Number of cores | 6 | |
| Core insulation material | polypropylene | |
| Halogen free | Yes | |
| Temperature range (unmoved) | -50 °C to 90 °C | |
| Colour | orange | |
| Outer diameter | 11.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
