1020073 | LAPP

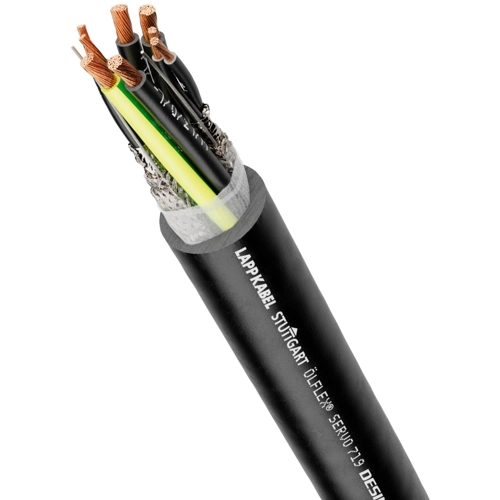

PVC servo line ÖLFLEX SERVO 719 8 G 4G2.5 mm² + 2 x 2x1 mm², unshielded, black, 1020073
Order No.: 33P2201
EAN: 4044777468959
MPN:
1020073
ÖLFLEX SERVO 719 4G2,5+2x(2x1)
Series: ÖLFLEX SERVO 719
Unit Price (€ / mtr.)
12.6021 € *
Standard delivery time from the manufacturer is: On Request
Control line, 1020073, LAPP
The 1020073 is a low capacitance servo cable with PVC outer sheath for occasional flexible use and fixed installation subject to normal mechanical load conditions. This product is designed for use in dry, damp and wet conditions. At room temperature it is widely resistant against acids, caustic solutions and certain oils.
Features
- Oil-resistant
- UV-resistant
- One common cable for multiple circuits
- Space and weight-saving installations due to small cable diameters
Applications
- Connecting cable between servo controller and motor
- Plant engineering
- Industrial machinery and machine tools
- Printing machines
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 1 kV | |
| Material | PVC | |
| Protective conductor available | Yes | |
| Rated voltage | 1 kV | |
| Core colour sequence | black | |
| Rated voltage U0 | 600 V | |
| Cable material | copper, bright | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 4 kV | |
| Product type | servo line | |
| Temperature range (active) | -5 °C to 70 °C | |
| Number of cores | 8 | |
| Core insulation material | polypropylene | |
| Shielding | unshielded | |
| Halogen free | No | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Colour | black | |
| Outer diameter | 13.6 mm | |
| Cable cross-section | 4G2.5 mm² + 2 x 2x1 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
