1020071 | LAPP

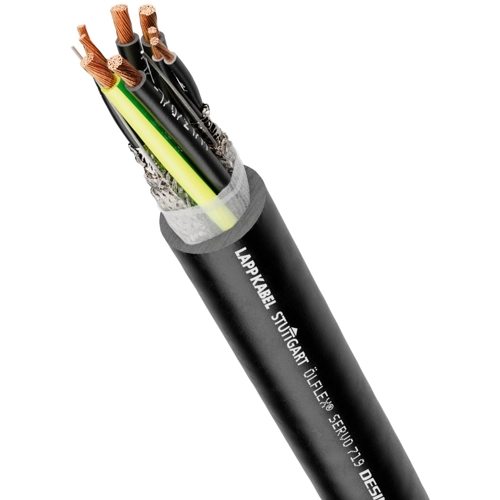

PVC servo line ÖLFLEX SERVO 719 8 G 4G0.75 mm + 2 x 2x0.34 mm², unshielded, black, 1020071
Order No.: 33P2194
EAN: 4044777468911
MPN:
1020071
ÖLFLEX SERVO 719 4G0,75+2x(2x0,34)
Series: ÖLFLEX SERVO 719
Unit Price (€ / mtr.)
5.5216 € *
Standard delivery time from the manufacturer is: On Request
Control line, 1020071, LAPP
The 1020071 is a low capacitance servo cable with PVC outer sheath for occasional flexible use and fixed installation subject to normal mechanical load conditions. This product is designed for use in dry, damp and wet conditions. At room temperature it is widely resistant against acids, caustic solutions and certain oils.
Features
- Oil-resistant
- UV-resistant
- One common cable for multiple circuits
- Space and weight-saving installations due to small cable diameters
Applications
- Connecting cable between servo controller and motor
- Plant engineering
- Industrial machinery and machine tools
- Printing machines
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Protective conductor available | Yes | |
| Core colour sequence | black | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Rated voltage | 1 kV | |
| Temperature range (active) | -5 °C to 70 °C | |
| Material | PVC | |
| Core insulation material | polypropylene | |
| Shielding | unshielded | |
| Product type | servo line | |
| Outer diameter | 9 mm | |
| Rated voltage UL/CSA | 1 kV | |
| Cable cross-section | 4G0.75 mm + 2 x 2x0.34 mm² | |
| Rated voltage U0 | 600 V | |
| Test voltage | 4 kV | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Number of cores | 8 | |
| Halogen free | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
