0026525 | LAPP

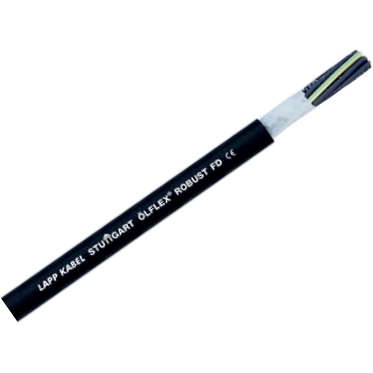

TPE control line ÖLFLEX ROBUST FD 12 G 1.5 mm², AWG 16, unshielded, black
Unit Price (€ / mtr.)
17.3502 € *
Available: 0 mtr.
Leadtime: On Request **
Control line, 0026525, LAPP
The 0026525 is high flexible power and control cable for flexible use and fixed installation for normal mechanical load conditions. It is suitable for outdoor use if the indicated temperature range is observed. At room temperature, it is largely resistant to the effects of acids, alkalis and oils, as well as greases and plant-, animal-, mineral- or synthetic-based waxes.
Features
- Highly resistant to oil and chemicals
- Ozone, UV and weather-resistant
- Hydrolysis-resistant to warm and hot water
- Good chemical resistance to ester-based hydraulic fluids
- Flexible down to -40°C
Applications
- In power chains or moving machine parts
- Machine tool building, medical technology, laundries, car washing equipment, chemical industry, composting plants, sewage works
- Food and beverage industry, especially for production and processing equipment of milk and meat products
- For indoor and outdoor use
Technical specifications
| Core insulation material | TPE | |
| Core colour sequence | black | |
| Number of cores | 12 | |
| Version | control line | |
| Outer diameter | 15.8 mm | |
| AWG cross-section | AWG 16 | |
| Colour | black | |
| Halogen free | Yes | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 1.5 mm² | |
| Material | TPE | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Test voltage | 4 kV | |
| Shielding | unshielded | |
| Drag chain suitable | Yes | |
| Protective conductor available | Yes | |
| Temperature range (active) | -40 °C to 105 °C | |
| Temperature range (unmoved) | -50 °C to 105 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
