0026524 | LAPP

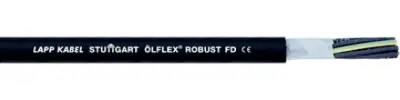

TPE control line ÖLFLEX ROBUST FD 7 G 1.5 mm², AWG 16, unshielded, black, 0026524

Order No.: 32P9907
EAN: 4044774627915
MPN:
0026524
ÖLFLEX ROBUST FD 7G1,5
LAPP
0026524 LAPP Control Cables
Image may differ
Unit Price (€ / mtr.)
12.6021 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
12.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
12.6021 €

Control line, 0026524, LAPP

The 0026524 is high flexible power and control cable for flexible use and fixed installation for normal mechanical load conditions. It is suitable for outdoor use if the indicated temperature range is observed. At room temperature, it is largely resistant to the effects of acids, alkalis and oils, as well as greases and plant-, animal-, mineral- or synthetic-based waxes.

Features

  • Highly resistant to oil and chemicals
  • Ozone, UV and weather-resistant
  • Hydrolysis-resistant to warm and hot water
  • Good chemical resistance to ester-based hydraulic fluids
  • Flexible down to -40°C

Applications

  • In power chains or moving machine parts
  • Machine tool building, medical technology, laundries, car washing equipment, chemical industry, composting plants, sewage works
  • Food and beverage industry, especially for production and processing equipment of milk and meat products
  • For indoor and outdoor use
Technical specifications
Core insulation material TPE
Core colour sequence black
Number of cores 7
Version control line
Outer diameter 13.4 mm
AWG cross-section AWG 16
Colour black
Halogen free Yes
Conductor category CL.6 = finest stranded
Cable material copper, tin-plated
Cable cross-section 1.5 mm²
Material TPE
Rated voltage 500 V
Rated voltage U0 300 V
Test voltage 4 kV
Shielding unshielded
Drag chain suitable Yes
Protective conductor available Yes
Temperature range (active) -40 °C to 105 °C
Temperature range (unmoved) -50 °C to 105 °C
Logistics
Country of origin QU
Customs tariff number 85444995
Original Packaging Ring with 100 meters
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
