0026517 | LAPP

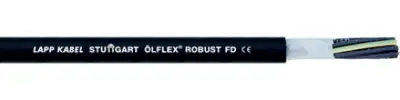

TPE control line ÖLFLEX ROBUST FD 12 G 1.0 mm², AWG 18, unshielded, black, 0026517
Unit Price (€ / mtr.)
12.6259 € *
Standard delivery time from the manufacturer is: 6 Weeks
Control line, 0026517, LAPP
The 0026517 is high flexible power and control cable for flexible use and fixed installation for normal mechanical load conditions. It is suitable for outdoor use if the indicated temperature range is observed. At room temperature, it is largely resistant to the effects of acids, alkalis and oils, as well as greases and plant-, animal-, mineral- or synthetic-based waxes.
Features
- Highly resistant to oil and chemicals
- Ozone, UV and weather-resistant
- Hydrolysis-resistant to warm and hot water
- Good chemical resistance to ester-based hydraulic fluids
- Flexible down to -40°C
Applications
- In power chains or moving machine parts
- Machine tool building, medical technology, laundries, car washing equipment, chemical industry, composting plants, sewage works
- Food and beverage industry, especially for production and processing equipment of milk and meat products
- For indoor and outdoor use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | TPE | |
| Cable material | copper, tin-plated | |
| Version | control line | |
| Conductor category | CL.6 = finest stranded | |
| Number of cores | 12 | |
| Shielding | unshielded | |
| Core insulation material | TPE | |
| Test voltage | 4 kV | |
| Cable cross-section | 1.0 mm² | |
| Core colour sequence | black | |
| Temperature range (unmoved) | -50 °C to 105 °C | |
| Temperature range (active) | -40 °C to 105 °C | |
| Rated voltage U0 | 300 V | |
| Drag chain suitable | Yes | |
| Protective conductor available | Yes | |
| Outer diameter | 13.3 mm | |
| Colour | black | |
| Rated voltage | 500 V | |
| Halogen free | Yes | |
| AWG cross-section | AWG 18 |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
