0026503 | LAPP

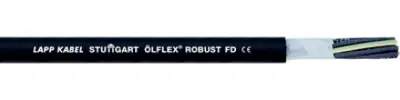

TPE control line ÖLFLEX ROBUST FD 5 G 0.75 mm², AWG 19, unshielded, black, 0026503
Unit Price (€ / mtr.)
5.4264 € *
Standard delivery time from the manufacturer is: On Request
Control line, 0026503, LAPP
The 0026503 is high flexible power and control cable for flexible use and fixed installation for normal mechanical load conditions. It is suitable for outdoor use if the indicated temperature range is observed. At room temperature, it is largely resistant to the effects of acids, alkalis and oils, as well as greases and plant-, animal-, mineral- or synthetic-based waxes.
Features
- Highly resistant to oil and chemicals
- Ozone, UV and weather-resistant
- Hydrolysis-resistant to warm and hot water
- Good chemical resistance to ester-based hydraulic fluids
- Flexible down to -40°C
Applications
- In power chains or moving machine parts
- Machine tool building, medical technology, laundries, car washing equipment, chemical industry, composting plants, sewage works
- Food and beverage industry, especially for production and processing equipment of milk and meat products
- For indoor and outdoor use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 19 | |
| Colour | black | |
| Core colour sequence | black | |
| Core insulation material | TPE | |
| Temperature range (active) | -40 °C to 105 °C | |
| Drag chain suitable | Yes | |
| Rated voltage | 500 V | |
| Halogen free | Yes | |
| Cable cross-section | 0.75 mm² | |
| Temperature range (unmoved) | -50 °C to 105 °C | |
| Number of cores | 5 | |
| Outer diameter | 8.6 mm | |
| Material | TPE | |
| Test voltage | 4 kV | |
| Product type | control line | |
| Protective conductor available | Yes | |
| Rated voltage U0 | 300 V | |
| Cable material | copper, tin-plated | |
| Shielding | unshielded | |
| Conductor category | CL.6 = finest stranded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Ring with 100 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
