0023284 | LAPP
PUR control line ÖLFLEX PETRO C HFFR 0,6/1 kV 5 G 1.5 mm², shielded, blue, 0023284
Order No.: 33P2151
EAN: 4064728754924
MPN:
0023284
ÖLFLEX PETRO C HFFR 5G1,5 BU
Series: ÖLFLEX PETRO C HFFR 0,6/1 kV
Unit Price (€ / mtr.)
20.2419 € *
Standard delivery time from the manufacturer is: On Request
Control line, 0023284, LAPP

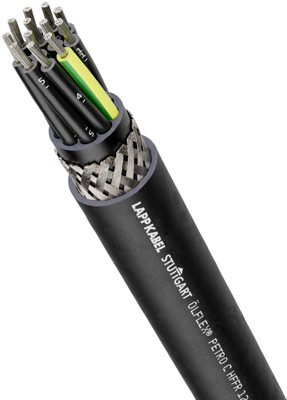

The 0023284 is a robust cable designed for offshore applications like instance on oil rigs for the cabling of pumping stations, compressors and generators of drilling units. The tinned copper braiding serves as screening against electrical interference. Depending on normative interpretation the braiding also can be used as so-called „Braid Armour“.
Features
- Flame-retardant
- Halogen-free
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Interference signals
- UV-resistant
Applications
- Onshore and offshore applications
- Particularly in wet areas of machine tools and transfer lines
- Chemical and petrochemical industry
- For indoor and outdoor use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PUR | |
| Cable material | copper, tin-plated | |
| Version | control line | |
| Conductor category | CL.5 = fine stranded | |
| Number of cores | 5 | |
| Shielding | shielded | |
| Core insulation material | polyolefine | |
| Test voltage | 4 kV | |
| Cable cross-section | 1.5 mm² | |
| Temperature range (unmoved) | -50 °C to 90 °C | |
| Temperature range (active) | -40 °C to 90 °C | |
| Rated voltage UL/CSA | 1 kV | |
| Standard number | UL | |
| Rated voltage U0 | 600 V | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Outer diameter | 14 mm | |
| Colour | blue | |
| Rated voltage | 1 kV | |
| Halogen free | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
