0023261 | LAPP

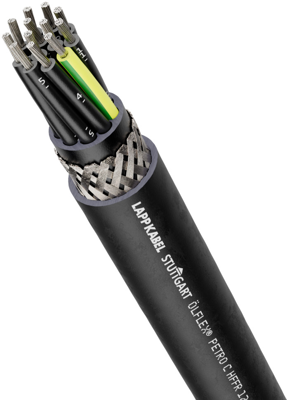

PUR control line ÖLFLEX PETRO C HFFR 0,6/1 kV 4 G 6.0 mm², shielded, black, 0023261
Order No.: 33P2149
EAN: 4064728754863
MPN:
0023261
ÖLFLEX PETRO C HFFR 4G6 BK
Series: ÖLFLEX PETRO C HFFR 0,6/1 kV
Unit Price (€ / mtr.)
34.0697 € *
Standard delivery time from the manufacturer is: On Request
Control line, 0023261, LAPP
The 0023261 is a robust cable designed for offshore applications like instance on oil rigs for the cabling of pumping stations, compressors and generators of drilling units. The tinned copper braiding serves as screening against electrical interference. Depending on normative interpretation the braiding also can be used as so-called „Braid Armour“.
Features
- Flame-retardant
- Halogen-free
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Interference signals
- UV-resistant
Applications
- Onshore and offshore applications
- Particularly in wet areas of machine tools and transfer lines
- Chemical and petrochemical industry
- For indoor and outdoor use
Technical specifications
| Core insulation material | polyolefine | |
| Colour | black | |
| Number of cores | 4 | |
| Protective conductor available | Yes | |
| Outer diameter | 17.7 mm | |
| Drag chain suitable | No | |
| Test voltage | 4 kV | |
| Rated voltage UL/CSA | 1 kV | |
| Halogen free | Yes | |
| Cable cross-section | 6.0 mm² | |
| Version | control line | |
| Material | PUR | |
| Cable material | copper, tin-plated | |
| Shielding | shielded | |
| Rated voltage U0 | 600 V | |
| Temperature range (unmoved) | -50 °C to 90 °C | |
| Temperature range (active) | -40 °C to 90 °C | |
| Conductor category | CL.5 = fine stranded | |
| Standard number | UL | |
| Rated voltage | 1 kV |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
