0023253 | LAPP
PUR control line ÖLFLEX PETRO C HFFR 0,6/1 kV 3 G 1.5 mm², shielded, black, 0023253
Order No.: 33P2137
EAN: 4044774863399
MPN:
0023253
ÖLFLEX PETRO C HFFR 3G1,5 BK
Series: ÖLFLEX PETRO C HFFR 0,6/1 kV
Unit Price (€ / mtr.)
13.7326 € *
Standard delivery time from the manufacturer is: On Request
Control line, 0023253, LAPP

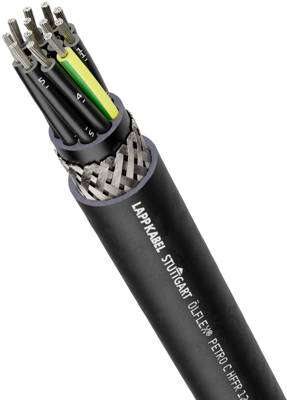

The 0023253 is a robust cable designed for offshore applications like instance on oil rigs for the cabling of pumping stations, compressors and generators of drilling units. The tinned copper braiding serves as screening against electrical interference. Depending on normative interpretation the braiding also can be used as so-called „Braid Armour“.
Features
- Flame-retardant
- Halogen-free
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Interference signals
- UV-resistant
Applications
- Onshore and offshore applications
- Particularly in wet areas of machine tools and transfer lines
- Chemical and petrochemical industry
- For indoor and outdoor use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Protective conductor available | Yes | |
| Temperature range (unmoved) | -50 °C to 90 °C | |
| Rated voltage | 1 kV | |
| Standard number | UL | |
| Temperature range (active) | -40 °C to 90 °C | |
| Material | PUR | |
| Core insulation material | polyolefine | |
| Shielding | shielded | |
| Product type | control line | |
| Drag chain suitable | No | |
| Outer diameter | 12 mm | |
| Rated voltage UL/CSA | 1 kV | |
| Cable cross-section | 1.5 mm² | |
| Rated voltage U0 | 600 V | |
| Test voltage | 4 kV | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, tin-plated | |
| Number of cores | 3 | |
| Halogen free | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
