53112150 | LAPP

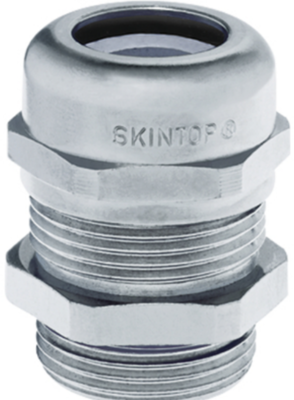

Cable gland, M40, 45 mm, Clamping range 15 to 23 mm, IP69, silver, 53112150

Order No.: 32P2933
EAN: 4044773172379
MPN:
53112150
SKINTOP MSR-M 40x1,5
Series: SKINTOP MSR-M
LAPP
default L
Image may differ
Print
Key Specification:
Version cable gland
Thread size M40
min. clamping range 15 mm
max. clamping range 23 mm
spanner size 45 mm
Show 10 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
26.2038 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
26.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
26.2038 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Technical specifications
Version cable gland
Colour silver
Thread size M40
Length 48 mm
Material brass, nickel-plated
max. clamping range 23 mm
max. operating temperature 100 °C
min. clamping range 15 mm
min. operating temperature -25 °C
spanner size 45 mm
Degree of protection (IP) IP69
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 74198090
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
