53112140 | LAPP

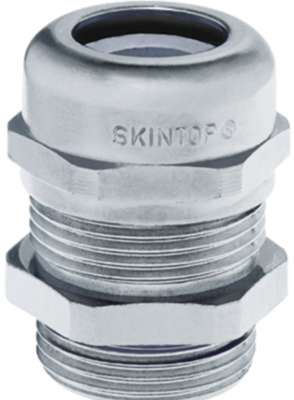

Cable gland, M32, 36 mm, Clamping range 7 to 15 mm, IP69, silver, 53112140

Order No.: 32P2932
EAN: 4044773172447
MPN:
53112140
SKINTOP MSR-M 32x1,5
Series: SKINTOP MSR-M
LAPP
default L
Image may differ
Print
Key Specification:
Version cable gland
Thread size M32
min. clamping range 7 mm
max. clamping range 15 mm
spanner size 36 mm
Show 10 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
19.0995 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
19.10 € *
*incl. VAT plus shipping costs
**Subject to prior sale
25 pcs.
19.0995 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
Technical specifications
Version cable gland
Colour silver
Thread size M32
Length 45.5 mm
Material brass, nickel-plated
max. clamping range 15 mm
max. operating temperature 100 °C
min. clamping range 7 mm
min. operating temperature -25 °C
spanner size 36 mm
Degree of protection (IP) IP69
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 74198090
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
