52107840 | LAPP

Angled gland, M32, 32/34/41 mm, Clamping range 16 to 25 mm, IP55, 52107840

Order No.: 32P1793
EAN: 4044773167139
MPN:
52107840
SKINDICHT RWV-M 32x1,5
Series: SKINDICHT RWV

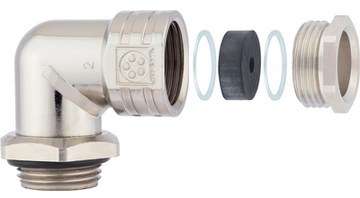

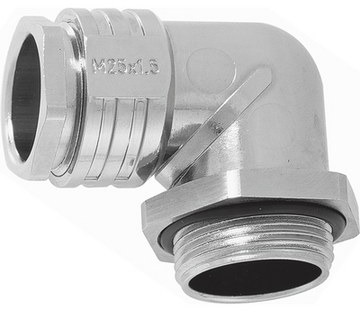

52107840 LAPP Cable Glands Image 1
52107840 LAPP Cable Glands Image 2
Image may differ
Unit Price (€ / pc.)
16.2673 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
16.27 € *
Price list
Quantity
Price per unit*
1 pcs.
16.2673 €
10 pcs.
14.8631 €
50 pcs.
13.9468 €
100 pcs.
13.0186 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
Filter Property Value
Degree of protection (IP) IP55
max. clamping range 25 mm
Length 33.5 mm
Product type angled gland
min. operating temperature -20 °C
Material zinc die casting
spanner size 32/34/41 mm
max. operating temperature 100 °C
min. clamping range 16 mm
Thread size M32
Logistics
Property Value
Country of origin DE
Customs tariff number 79070000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
