52107830 | LAPP

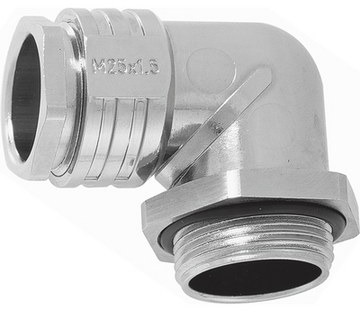

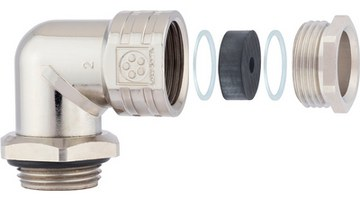

Angled gland, M25, 25/27/32 mm, Clamping range 8.5 to 17.5 mm, IP55, 52107830
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
12.3165 € *
Available in 7 Days: 590 pcs. - if ordered today
Total Price:
12.32 € *
Price list
Quantity
Price per unit*
1 pcs.
12.3165 €
10 pcs.
11.2693 €
50 pcs.
10.5672 €
100 pcs.
9.8532 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | angled gland | |
| Thread size | M25 | |
| min. clamping range | 8.5 mm | |
| max. clamping range | 17.5 mm | |
| spanner size | 25/27/32 mm | |
| Length | 31 mm | |
| Degree of protection (IP) | IP55 | |
| Material | zinc die casting | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 79070000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
