KG20A T303 E | Kraus & Naimer

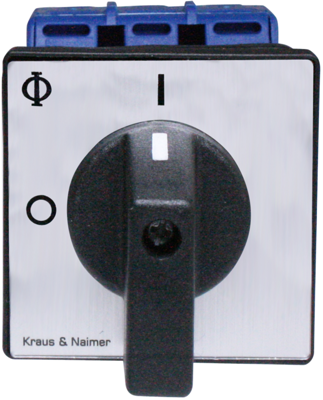

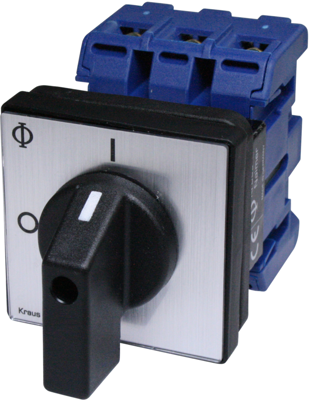

Load-break switch, Rotary actuator, 3 pole, 25 A, 690 V, (L x W x H) 53.8 x 42 x 54 mm, panel mounting, KG20A T303 E
Active
Product by Kraus & Naimer at Bürklin Elektronik
Load disconnect switches, type Kraus & Naimer KG.
To IEC/EN 60947, IEC/EN 60204, VDE 0660 and VDE 0113, 3-pole. Four-hole front-panel mounting; Degree of protection: IP 66. Front labeling: 0-I. Black toggle lever. Insulation voltage (mains with grounded star point only): 690 V. Overvoltage category: III. Degree of soiling: 3. Fine-wire cross-section with wire end ferrule: max. 4.0 mm²
Technical attributes (type, continuous current, breaking capacity (3 x 380 V/440 V), front-panel size, mounting depth): KG20A T303 E, 25 A, 7.5 kW, 48 x 48, 53.8 mm
| Actuator | Rotary actuator | |
| Width | 42 mm | |
| Permanent current | 25 A | |
| Height | 54 mm | |
| Isolation voltage | 690 V | |
| Length | 53.8 mm | |
| Assembly | panel mounting | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP66 |
| Country of origin | DE |
| Customs tariff number | 85365080 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
