97 53 18 | Knipex

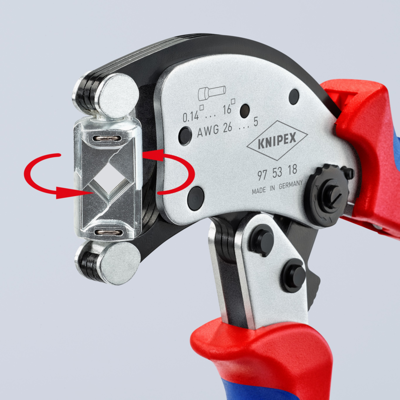

Crimping pliers for wire end ferrules, 0.14-16 mm², AWG 26-5, Knipex, 97 53 18
Order No.: 05L2040
EAN: 4099891355241
MPN:
97 53 18
975318
Unit Price (€ / pc.)
165.410 € *
Available: 0 pcs.
Available in 7 Days: 10 pcs.
Leadtime: 1 Week **
Total Price:
165.41 € *
Price list
Quantity
Price per unit*
1 pcs.
165.410 €
3 pcs.
148.869 €
*incl. VAT plus shipping costs
**Subject to prior sale
For crimping end sleeves (ferrules) according to DIN 46228 parts 1 + 4. Square crimp profile, high capacity range of 0.14 to 16 mm². 360° rotatable crimping die- with 8 tactile locking positions. Self-adjustment to the desired size of end sleeve (ferrule): no crimping errors due to using the wrong crimping die or to an incorrect setting. Crimping of twin end sleeves (ferrules) up to 2 x 6 mm² possible. Slim head for ideal accessibility. Repetitive, high crimping quality due to integral lock (self-releasing mechanism). Favourable lever ratio due to toggle lever. Crimping pressure has been set precisely (calibrated) in the factory, re-adjustable. Handy shape and low weight provide high operation comfort. Chrome vanadium electric steel in special quality, oil-hardened
Technical specifications
| Crimping Range (AWG) | AWG 26-5 | |
| Crimping Range (mm²) | 0.14-16 mm² | |
| Suitable for | wire end ferrules | |
| Weight | 478 g | |
| Length | 240 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 82032000 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
